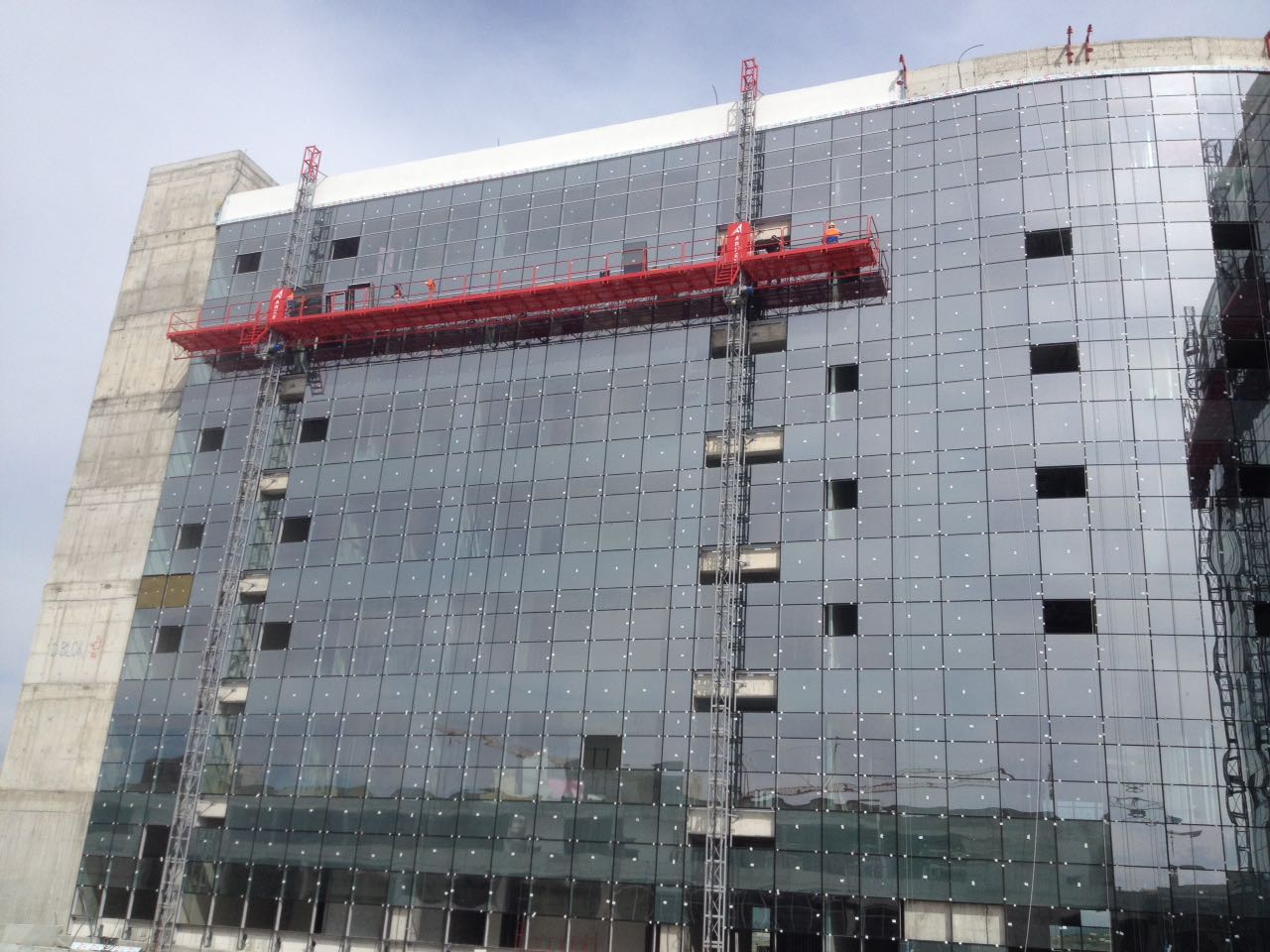

The ARK-PL4000C model is designed for wider facades and allows more personnel to work on a wider field. Therefore, completing larger facades takes shorter time, resulting in time and cost savings.
ARK- PL4000C
Climbing Mast Work Platform
Technical DataTechnical Data
SPEED:
9 m/min
MAXIMUM WORKING HEIGHT:
150 m
PLATFORM WIDTH (INNER - BOLE):
1.6 m
PLATFORM LENGTH (INTERNAL - BORE) / 3900 kg:
12 m
PLATFORM LENGTH (INTERNAL - BORE) / 3500 kg:
15 m
PLATFORM LENGTH (INTERNAL - BORE) / 3200 kg:
18 m
PLATFORM LENGTH (INTERNAL - BORE) / 3000 kg:
21 m
PLATFORM LENGTH (INTERNAL - BORE) / 2750 kg:
24 m
PLATFORM LENGTH (INTERNAL - BORE) / 2250 kg:
30 m
PLATFORM LENGTH (INTERNAL - BORE) / 1500 kg:
33 m
PLATFORM LENGTH (INTERNAL - BORE)/ 900 kg:
36 m
POWER:
380-500 V, 50-60 Hz, 3 phases
ENGINE:
11 kW x 2 units
MAST MEASURE:
510 x 510 x 1508
MAST WEIGHT:
78 kg
MAST:
Double
GEAR MODULES:
5
